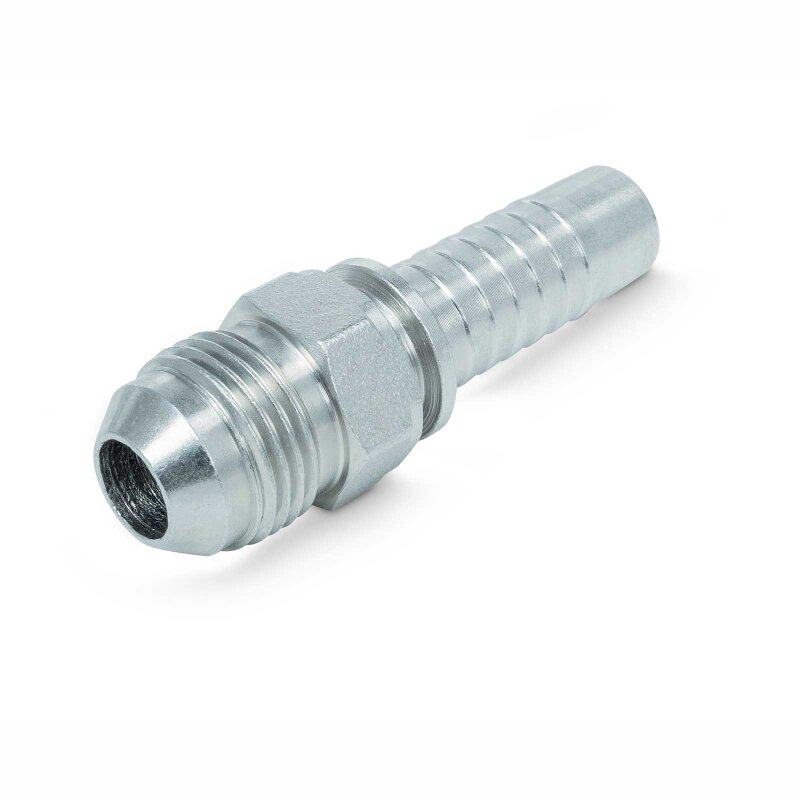

Pressnippel AGJ JM - JIC-Anschlussstutzen - 74°-Konus
Pressnippel AGJ JM - JIC-Anschlussstutzen - 74°-Konus mit UN-/UNF-Gewinde

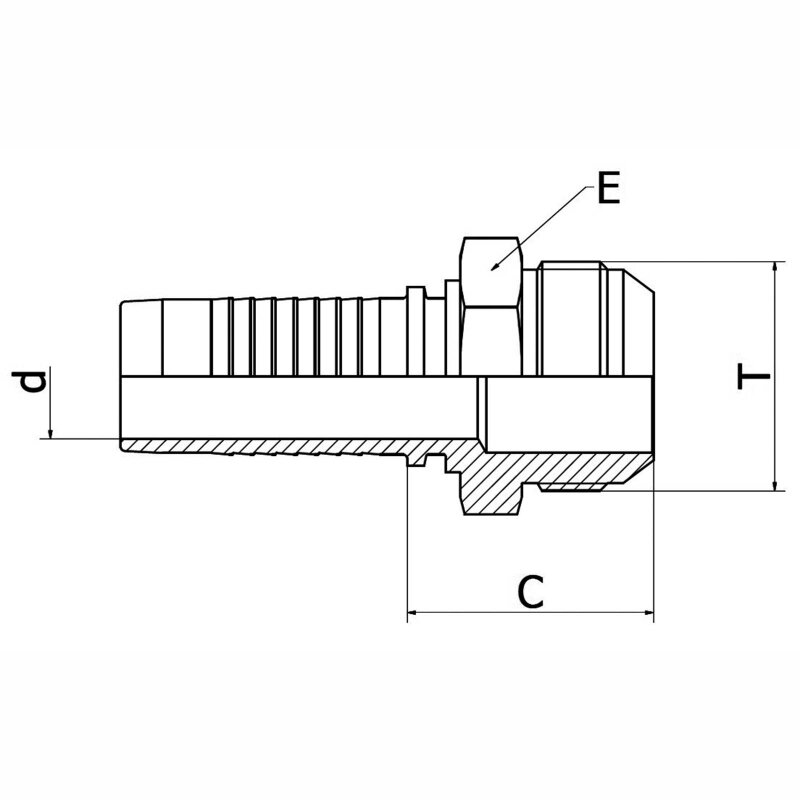

Technische Daten Pressnippel JIC-Anschlussstutzen:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 12 - 42 mm
L: 54,0 - 99,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll |
Anschluss T
|
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | 7/16-20 | 26,5 | 4,0 | 12 | 54,0 | 5 |
| 6 | 04 | 1/4" | 1/2-20 | 27,0 | 4,0 | 14 | 52,0 | 5 |
| 6 | 04 | 1/4" | 9/16-18 | 27,0 | 4,0 | 15 | 52,0 | 5 |
| 8 | 05 | 5/16" | 9/16-18 | 28,0 | 5,5 | 15 | 54,5 | 5 |
| 10 | 06 | 3/8" | 9/16-18 | 30,5 | 7,0 | 17 | 59,5 | 5 |
| 10 | 06 | 3/8" | 3/4-16 | 30,5 | 7,0 | 19 | 59,5 | 5 |
| 10 | 06 | 3/8" | 7/8-14 | 36,0 | 7,0 | 24 | 63,5 | 5 |
| 12 | 08 | 1/2" | 3/4-16 | 31,0 | 9,5 | 19 | 62,5 | 5 |
| 12 | 08 | 1/2" | 7/8-14 | 35,0 | 9,5 | 24 | 66,5 | 5 |
| 12 | 08 | 1/2" | 1.1/16-12 | 37,0 | 9,5 | 27 | 68,5 | 5 |
| 16 | 10 | 5/8" | 7/8-14 | 35,0 | 12,0 | 24 | 69,5 | 5 |
| 16 | 10 | 5/8" | 1.1/16-12 | 37,0 | 12,0 | 27 | 71,5 | 5 |
| 19 | 12 | 3/4" | 1.1/16-12 | 38,0 | 15,0 | 27 | 87,5 | 5 |
| 19 | 12 | 3/4" | 1.3/16-12 | 41,0 | 15,0 | 32 | 90,5 | 5 |
| 19 | 12 | 3/4" | 1.5/16-12 | 42,0 | 15,0 | 34 | 91,5 | 5 |
| 25 | 16 | 1" | 1.5/16-12 | 43,0 | 20,0 | 34 | 96,5 | 1 |
| 25 | 16 | 1 | 1.5/8-12 | 48,5 | 20,0 | 42 | 99,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel AGJ JM
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-AGJ-VC09JM05 |
| GTIN: | 4048418272295 |
| Versandgewicht: | 0,03 kg |
| Artikelgewicht: | 0,03 kg |
| Inhalt: | 1,00 Stück |
