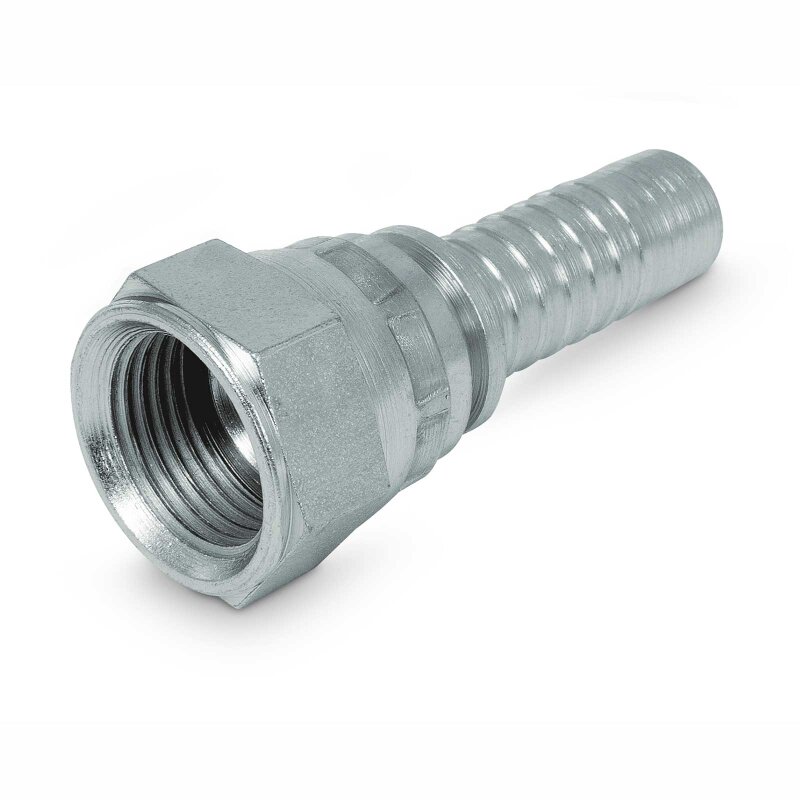

Pressnippel DKJ JF - JIC-Dichtkopf - 74°-Konus mit Überwurfmutter - UN-/UNF-Gewinde

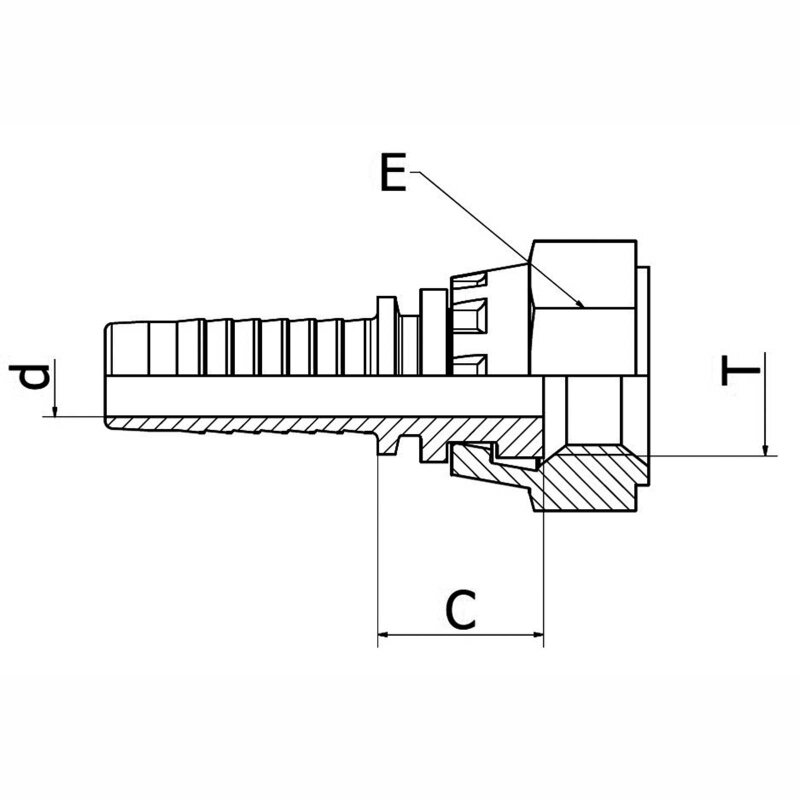

Technische Daten:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 15 - 38 mm
L: 40,0 - 75,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll |
Anschluss T
|
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | 7/16-20 | 13,0 | 4,0 | 15 | 40,0 | 5 |
| 6 | 04 | 1/4" | 1/2-20 | 15,0 | 4,0 | 17 | 40,0 | 5 |
| 6 | 04 | 1/4" | 9/16-18 | 16,0 | 4,0 | 19 | 41,0 | 5 |
| 8 | 05 | 5/16" | 1/2-20 | 15,0 | 5,5 | 17 | 42,5 | 5 |
| 8 | 05 | 5/16" | 9/16-18 | 16,0 | 5,5 | 19 | 43,5 | 5 |
| 10 | 06 | 3/8" | 9/16-18 | 16,0 | 7,0 | 19 | 45,5 | 5 |
| 10 | 06 | 3/8" | 3/4-16 | 16,0 | 7,0 | 24 | 45,5 | 5 |
| 12 | 08 | 1/2" | 3/4-16 | 17,0 | 9,5 | 24 | 48,5 | 5 |
| 12 | 08 | 1/2" | 7/8-14 | 19,0 | 9,5 | 27 | 50,5 | 5 |
| 12 | 08 | 1/2" | 1.1/16-12 | 21,0 | 9,5 | 32 | 53,0 | 5 |
| 16 | 10 | 5/8" | 7/8-14 | 19,0 | 12,0 | 27 | 53,5 | 5 |
| 16 | 10 | 5/8" | 1.1/16-12 | 22,0 | 12,0 | 32 | 56,0 | 5 |
| 19 | 12 | 3/4" | 1.1/16-12 | 20,0 | 15,0 | 32 | 69,5 | 5 |
| 19 | 12 | 3/4" | 1.3/16-12 | 24,5 | 15,0 | 36 | 65,5 | 5 |
| 19 | 12 | 3/4" | 1.5/16-12 | 21,0 | 15,0 | 38 | 70,5 | 5 |
| 25 | 16 | 1" | 1.5/16-12 | 22,0 | 20,0 | 38 | 75,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel DKJ JF
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-DKJ-VC09JF06 |
| GTIN: | 4048418259067 |
| Versandgewicht: | 0,04 kg |
| Artikelgewicht: | 0,04 kg |
| Inhalt: | 1,00 Stück |
