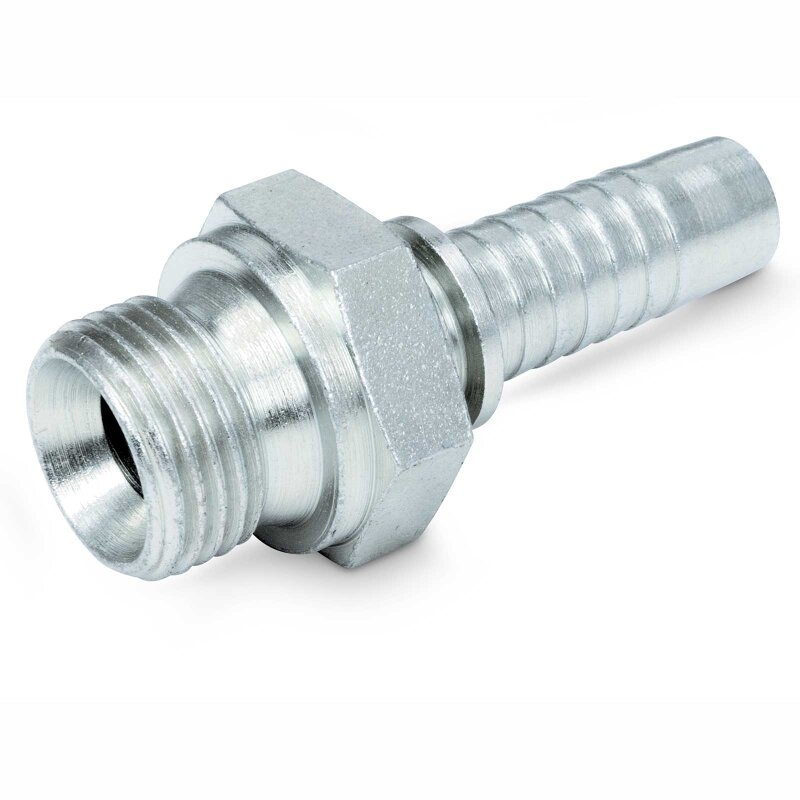

Pressnippel AGR BM - BSP-Anschlussstutzen - 60°-Konus - BSP Außengewinde

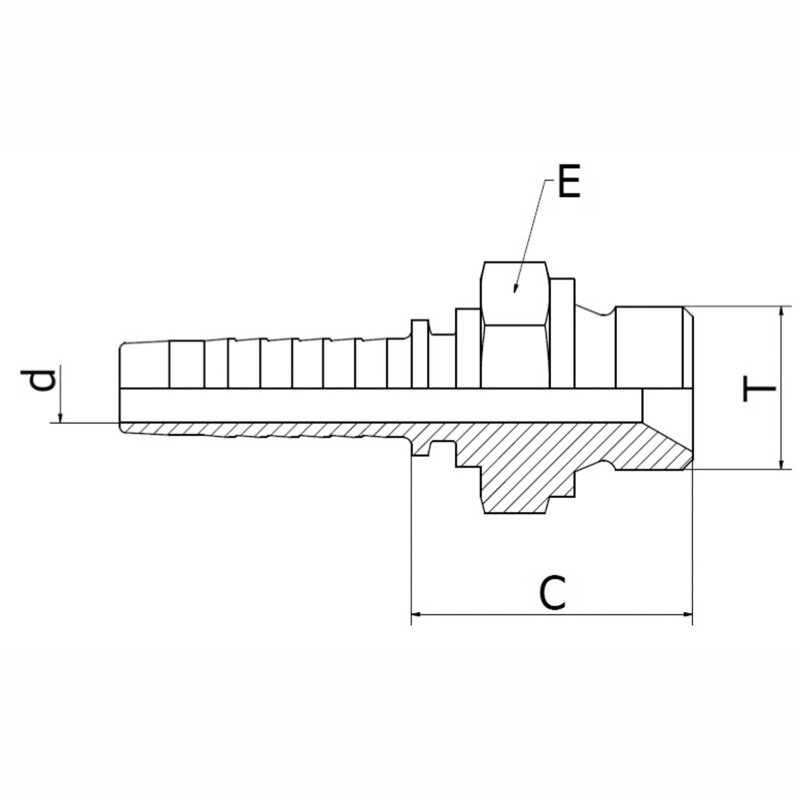

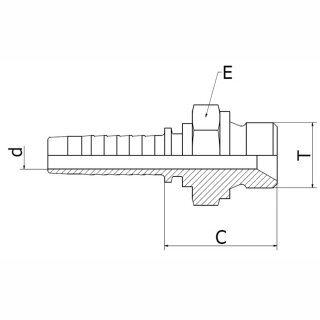

Technische Daten Pressnippel AGR BM 60°Konus:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 14 - 41 mm
L: 46,0 - 93,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll
|
Anschluss T |
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
L
(mm)
|
VE
|
|
6
|
04 | 1/4" | 1/8-28 | 21,0 |
4,0
|
14 |
46,0
|
5
|
| 6 | 04 | 1/4" | 1/4-19 | 26,0 | 4,0 | 19 | 54,4 | 5 |
| 6 | 04 | 1/4" | 3/8-19 | 28,0 | 4,0 | 22 | 53,0 | 5 |
| 8 | 05 | 5/16" | 1/4-19 | 27,0 | 5,5 | 19 | 54,5 | 5 |
| 8 | 05 | 5/16" | 3/8-19 | 28,0 | 5,5 | 22 | 55,5 | 5 |
| 10 | 06 | 3/8" | 3/8-19 | 29,0 | 7,0 | 22 | 58,5 | 5 |
| 10 | 06 | 3/8" | 1/2-14 | 32,0 | 7,0 | 27 | 61,5 | 5 |
| 12 | 08 | 1/2" | 3/8-19 | 29,0 | 9,5 | 22 | 60,5 | 5 |
| 12 | 08 | 1/2" | 1/2-14 | 33,0 | 9,5 | 27 | 64,5 | 5 |
| 12 | 08 | 1/2" | 3/4-14 | 35,5 | 9,5 | 32 | 66,5 | 5 |
| 16 | 10 | 5/8" | 1/2-14 | 33,0 | 12,0 | 27 | 67,5 | 5 |
| 16 | 10 | 5/8" | 5/8-14 | 34,0 | 12,0 | 30 | 68,5 | 5 |
| 16 | 10 | 5/8" | 3/4-14 | 33,5 | 12,0 | 32 | 69,5 | 5 |
| 19 | 12 | 3/4" | 3/4-14 | 36,0 | 15,0 | 32 | 75,0 | 5 |
| 19 | 12 | 3/4" | 1-11 | 39,0 | 15,0 | 41 | 88,5 | 1 |
| 25 | 16 | 1" | 1-11 | 40,0 | 20,0 | 41 | 93,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt VaCon AGR BM Pressnippel
Pressmaßtabelle für ValCon Schlauchleitungen
Angaben zur Produktsicherheit
Herstellerinformationen:
Indunorm Hydraulik GmbH
Oderstraße 3
Nordrhein-Westfalen
Neukirchen-Vluyn, Deutschland, 47506
info@indunorm.de
https://www.indunorm.de/
Oderstraße 3
Nordrhein-Westfalen
Neukirchen-Vluyn, Deutschland, 47506
info@indunorm.de
https://www.indunorm.de/
| Hersteller: | Indunorm Hydraulik GmbH |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-AGR-VCBM |
| Versandgewicht: | 0,02 kg |
| Artikelgewicht: | 0,02 kg |
| Inhalt: | 1,00 Stück |
