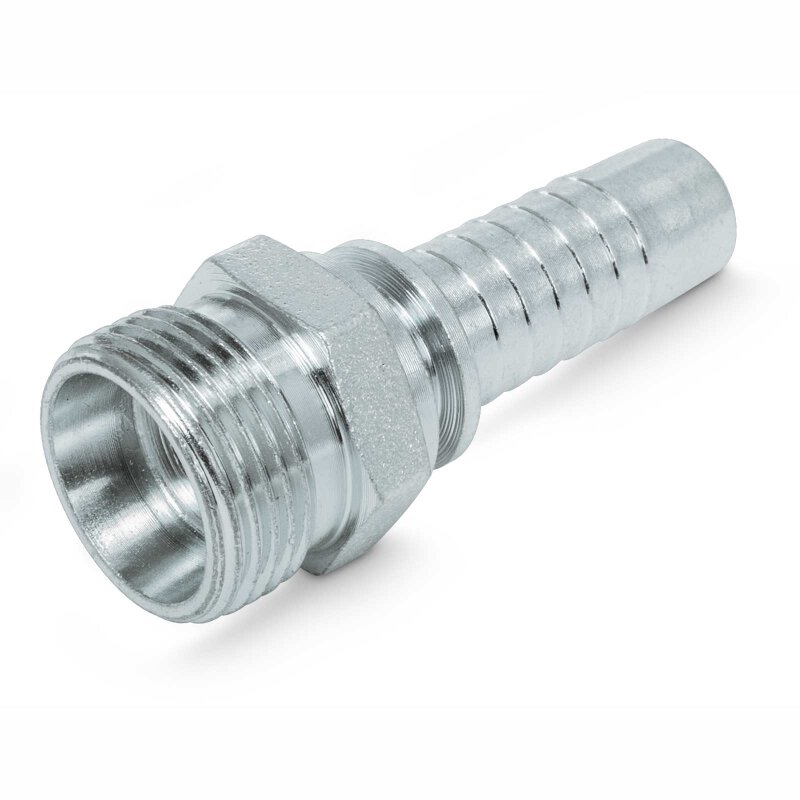

Pressnippel CEL ME - Gewindezapfen mit Bohrungsform W (24°) - DIN 3861, leichte Reihe
Technische Daten Pressnippel CEL ME - Leicht:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 14 - 36 mm
L: 48,0 - 85,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll |

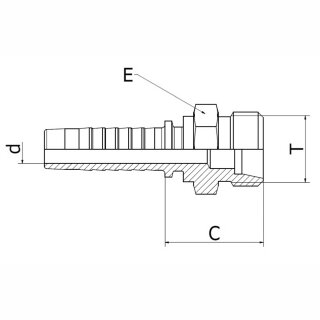

Anschluss T
|
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | M12x1,5 | 23,0 | 4,0 | 14 | 48,0 | 5 |
| 6 | 04 | 1/4" | M14x1,5 | 22,0 | 4,0 | 14 | 50,5 | 5 |
| 6 | 04 | 1/4" | M16x1,5 | 23,0 | 4,0 | 17 | 48,0 | 5 |
| 6 | 04 | 1/4" | M18x1,5 | 24,0 | 4,0 | 19 | 49,0 | 5 |
| 8 | 05 | 5/16" | M16x1,5 | 23,5 | 5,5 | 17 | 52,0 | 5 |
| 8 | 05 | 5/16" | M18x1,5 | 26,0 | 5,5 | 19 | 51,5 | 5 |
| 10 | 06 | 3/8" | M16x1,5 | 23,0 | 7,0 | 17 | 52,5 | 5 |
| 10 | 06 | 3/8" | M18x1,5 | 27,0 | 7,0 | 19 | 53,5 | 5 |
| 10 | 06 | 3/8" | M22x1,5 | 25,0 | 7,0 | 22 | 54,5 | 5 |
| 12 | 08 | 1/2" | M18x1,5 | 25,0 | 9,5 | 19 | 56,5 | 5 |
| 12 | 08 | 1/2" | M22x1,5 | 26,0 | 9,5 | 22 | 57,5 | 5 |
| 12 | 08 | 1/2" | M26x1,5 | 27,0 | 9,5 | 27 | 58,5 | 5 |
| 16 | 10 | 5/8" | M26x1,5 | 27,0 | 12,0 | 27 | 61,5 | 5 |
| 19 | 12 | 3/4" | M30x2 | 33,0 | 15,0 | 22 | 82,5 | 5 |
| 25 | 16 | 1" | M36x2 | 32,0 | 20,0 | 36 | 85,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel CEL ME
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-CEL-VC18ME12-06 |
| GTIN: | 4048418259906 |
| Versandgewicht: | 0,03 kg |
| Artikelgewicht: | 0,03 kg |
| Inhalt: | 1,00 Stück |
