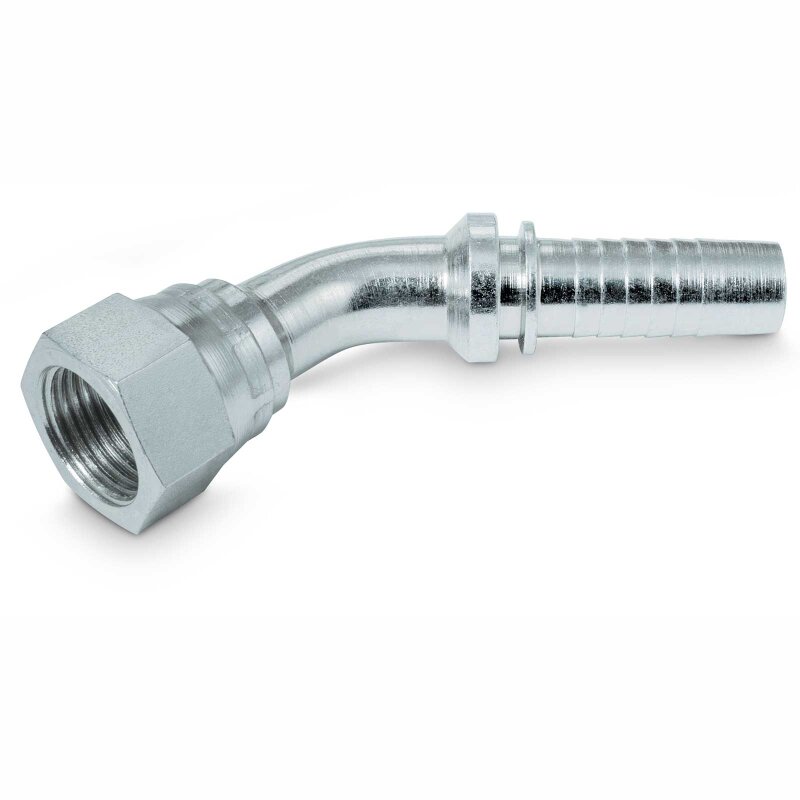

Pressnippel DKJ 45° JF 45° - JIC-Dichtkopf - 74°-Konus mit Überwurfmutter - UN-/UNF-Gewinde

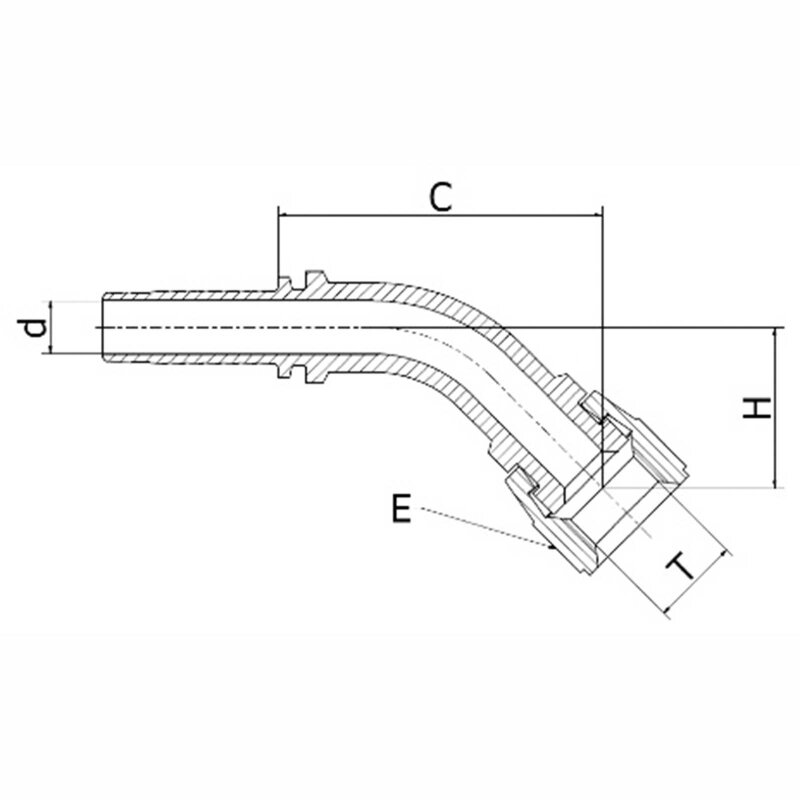

Technische Daten:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 15 - 38 mm
H: 15,0 - 34,0 mm
L: 66,0 - 136,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll |
Anschluss T
|
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
H
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | 7/16-20 | 38,0 | 4,0 | 15 | 15,0 | 66,0 | 5 |
| 6 | 04 | 1/4" | 1/2-20 | 40,0 | 4,0 | 17 | 17,0 | 68,0 | 5 |
| 6 | 04 | 1/4" | 9/16-18 | 36,0 | 4,0 | 19 | 15,0 | 61,0 | 5 |
| 8 | 05 | 5/16" | 9/16-18 | 42,0 | 5,5 | 19 | 15,0 | 70,0 | 5 |
| 10 | 06 | 3/8" | 9/16-18 | 50,0 | 7,0 | 19 | 19,0 | 85,0 | 5 |
| 10 | 06 | 3/8" | 3/4-16 | 41,0 | 7,0 | 24 | 19,0 | 70,5 | 5 |
| 12 | 08 | 1/2" | 3/4-16 | 46,0 | 9,5 | 24 | 21,0 | 77,5 | 5 |
| 12 | 08 | 1/2" | 7/8-14 | 52,0 | 9,5 | 27 | 23,0 | 83,5 | 5 |
| 16 | 10 | 5/8" | 7/8-14 | 58,0 | 12,0 | 27 | 23,0 | 92,5 | 5 |
| 16 | 10 | 5/8" | 1.1/16-12 | 63,0 | 12,0 | 32 | 25,0 | 97,5 | 5 |
| 19 | 12 | 3/4" | 1.1/16-12 | 69,0 | 15,0 | 32 | 27,0 | 118,5 | 5 |
| 19 | 12 | 3/4" | 1.3/16-12 | 66,0 | 15,0 | 36 | 29,0 | 107,0 | 5 |
| 19 | 12 | 3/4" | 1.5/16-12 | 67,0 | 15,0 | 38 | 29,0 | 108,0 | 5 |
| 25 | 16 | 1" | 1.5/16-12 | 83,0 | 20,0 | 38 | 34,0 | 136,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel DKJ 45° JF 45°
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-DKJ-VCJ45S |
| Versandgewicht: | 0,10 kg |
| Artikelgewicht: | 0,10 kg |
| Inhalt: | 1,00 Stück |
