2,39 € *

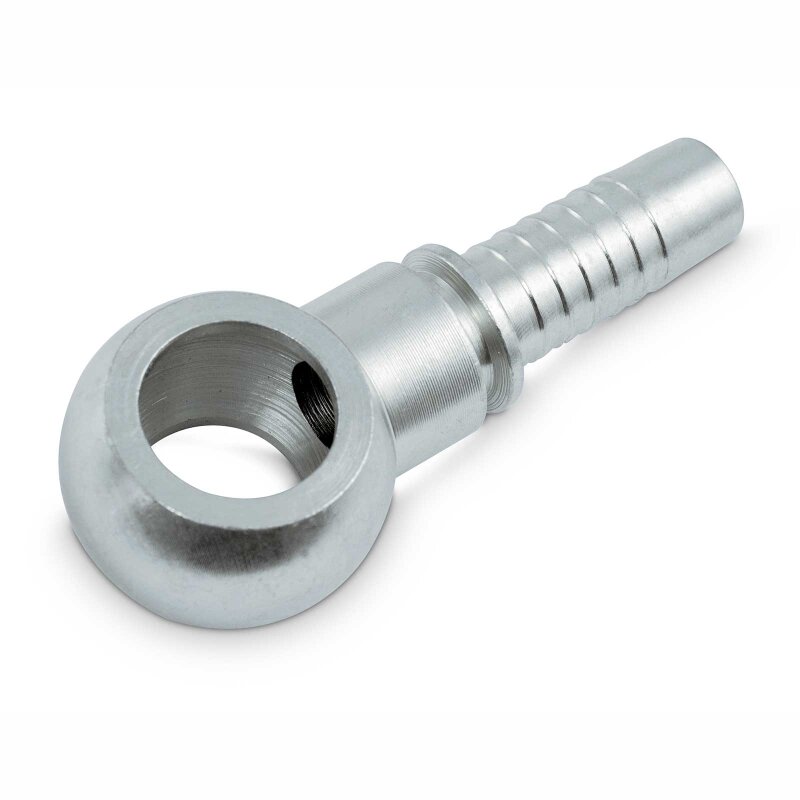

Pressnippel RGN MRN - Ringnippel - DIN 7642 für metrische Hohlschrauben
Technische Daten Pressnippel RGN MRN - Ringnippel - Metrisch:
DN: 6 - 25 mm
D: 17 - 54 mm
d: 4,0 - 20,0 mm
L: 52,5 - 101,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|

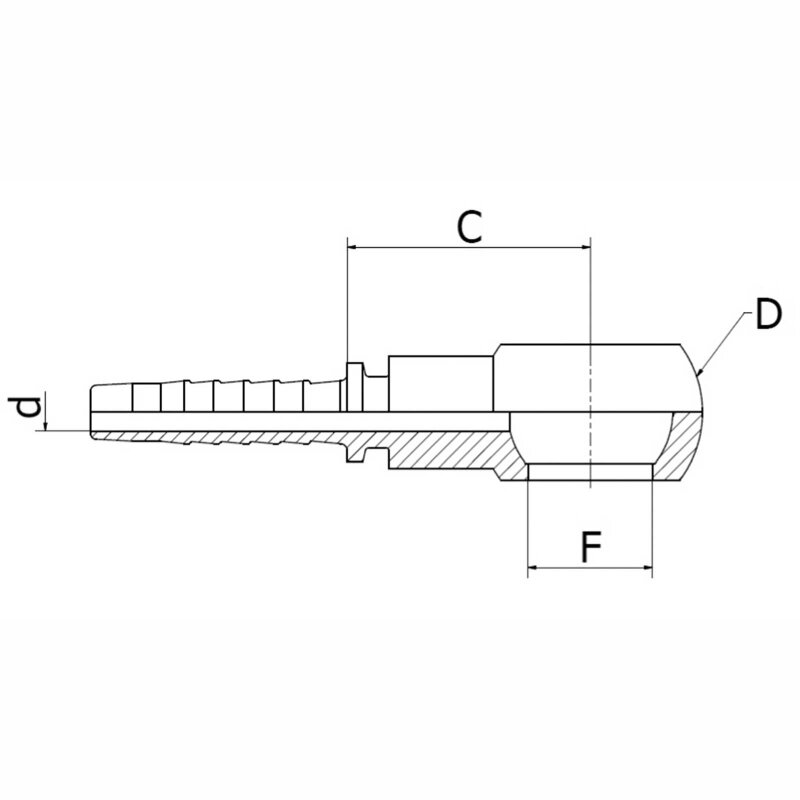

Nennweite
(mm)
|
Größe |
Zoll |
Bohrung F
|
D
(mm)
|
d
(mm)
|
Abzugsmaß C
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | M10 | 17 | 4,0 | 25,0 | 52,5 | 5 |
| 6 | 04 | 1/4" | M12 | 20 | 4,0 | 27,0 | 54,5 | 5 |
| 6 | 04 | 1/4" | M14 | 24 | 4,0 | 21,5 | 49,0 | 5 |
| 8 | 05 | 5/16" | M30 | 20 | 5,5 | 22,0 | 51,5 | 5 |
| 8 | 05 | 5/16" | M14 | 24 | 5,5 | 28,0 | 57,5 | 5 |
| 8 | 05 | 5/16" | M16 | 28 | 5,5 | 24,5 | 54,0 | 5 |
| 10 | 06 | 3/8" | M14 | 24 | 7,0 | 28,0 | 59,5 | 5 |
| 10 | 06 | 3/8" | M16 | 28 | 7,0 | 26,0 | 57,5 | 5 |
| 10 | 06 | 3/8" | M18 | 32 | 7,0 | 29,0 | 60,5 | 5 |
| 12 | 08 | 1/2" | M18 | 32 | 9,5 | 29,0 | 63,5 | 5 |
| 12 | 08 | 1/2" | M22 | 36 | 9,5 | 31,0 | 64,5 | 5 |
| 16 | 10 | 5/8" | M22 | 35 | 12,0 | 32,0 | 71,5 | 5 |
| 19 | 12 | 3/4" | M16 | 46 | 15,0 | 35,5 | 89,0 | 5 |
| 25 | 16 | 1" | M30 | 54 | 20,0 | 41,5 | 101,5 | 5 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel RGN MRN
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-RGN-VC18MRN08 |
| GTIN: | 4048418259937 |
| Versandgewicht: | 0,09 kg |
| Artikelgewicht: | 0,09 kg |
| Inhalt: | 1,00 Stück |
