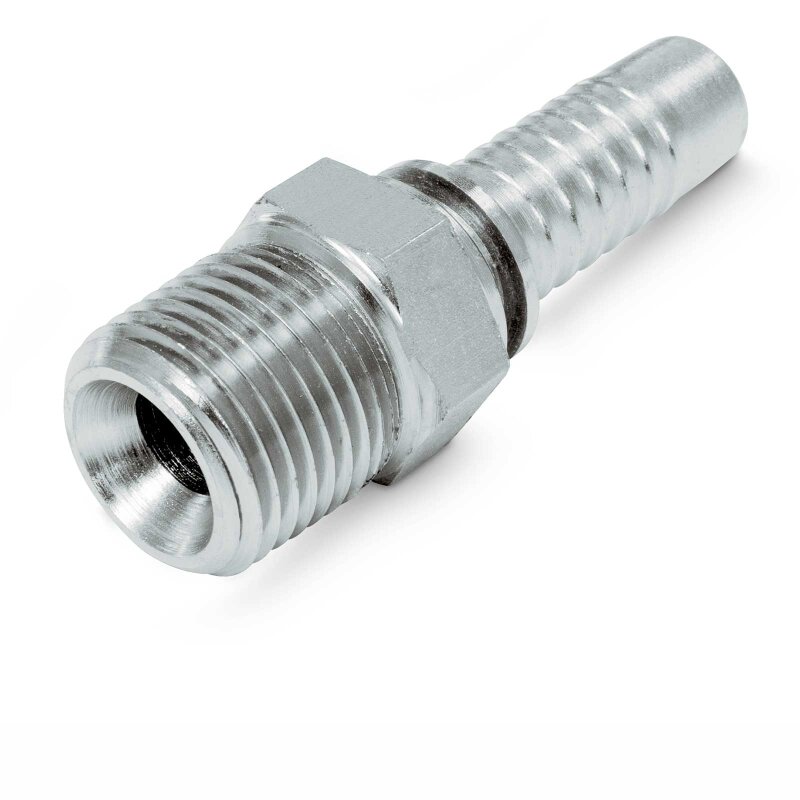

Pressnippel AGN NM - Anschlussstutzen mit konischem NPTF-Gewinde

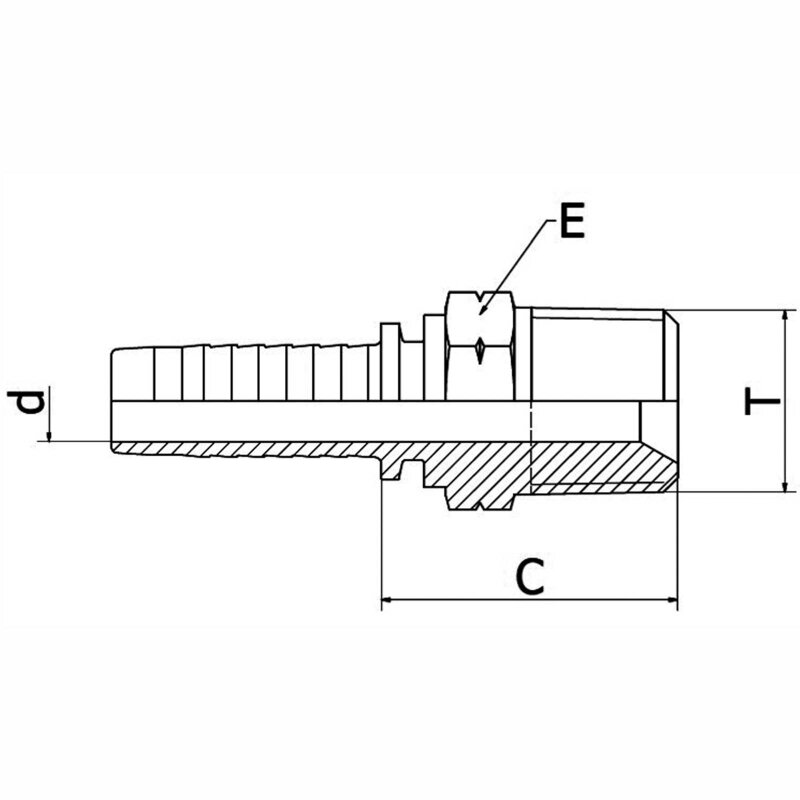

Technische Daten Pressnippel - Anschlussstutzen mit NPTF-Gewinde
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 12 - 36 mm
L: 47,0 - 102,0 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll
|
Anschluss T |
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
L
(mm)
|
VE
|
|
6
|
04 | 1/4" | 1/8-27 | 22,0 |
4,0
|
12 |
47,0
|
5
|
| 6 | 04 | 1/4" | 1/4-18 | 28,0 | 4,0 | 15 | 55,2 | 5 |
| 6 | 04 | 1/4" | 3/8-18 | 28,0 | 4,0 | 19 | 53,0 | 5 |
| 8 | 05 | 5/16" | 3/8-18 | 28,0 | 5,5 | 19 | 55,5 | 5 |
| 10 | 06 | 3/8" | 1/4-18 | 27,0 | 7,0 | 15 | 57,5 | 5 |
| 10 | 06 | 3/8" | 3/8-18 | 28,0 | 7,0 | 19 | 57,5 | 5 |
| 10 | 06 | 3/8" | 1/2-14 | 34,0 | 7,0 | 22 | 64,0 | 5 |
| 12 | 08 | 1/2" | 3/8-18 | 26,0 | 9,5 | 19 | 60,5 | 5 |
| 12 | 08 | 1/2" | 1/2-14 | 35,0 | 9,5 | 22 | 66,5 | 5 |
| 16 | 10 | 5/8" | 1/2-14 | 35,0 | 12,0 | 22 | 69,5 | 5 |
| 16 | 10 | 5/8" | 3/4-14 | 33,0 | 12,0 | 27 | 70,5 | 5 |
| 19 | 12 | 3/4" | 3/4-14 | 37,5 | 15,0 | 27 | 77,0 | 5 |
| 19 | 12 | 3/4" | 1-11.1/2 | 43,0 | 15,0 | 36 | 92,5 | 5 |
| 25 | 16 | 1" | 1-11.1/2 | 47,0 | 20,0 | 36 | 102,0 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon Pressnippel AGN NM
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-AGN-VCNM |
| Versandgewicht: | 0,02 kg |
| Artikelgewicht: | 0,02 kg |
| Inhalt: | 1,00 Stück |
