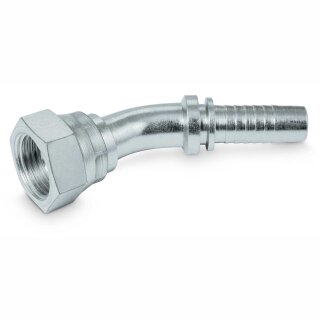

Pressnippel DKR 45° BF 45° - BSP-Dichtkopf - 60°-Konus mit Überwurfmutter - BSP-Gewinde

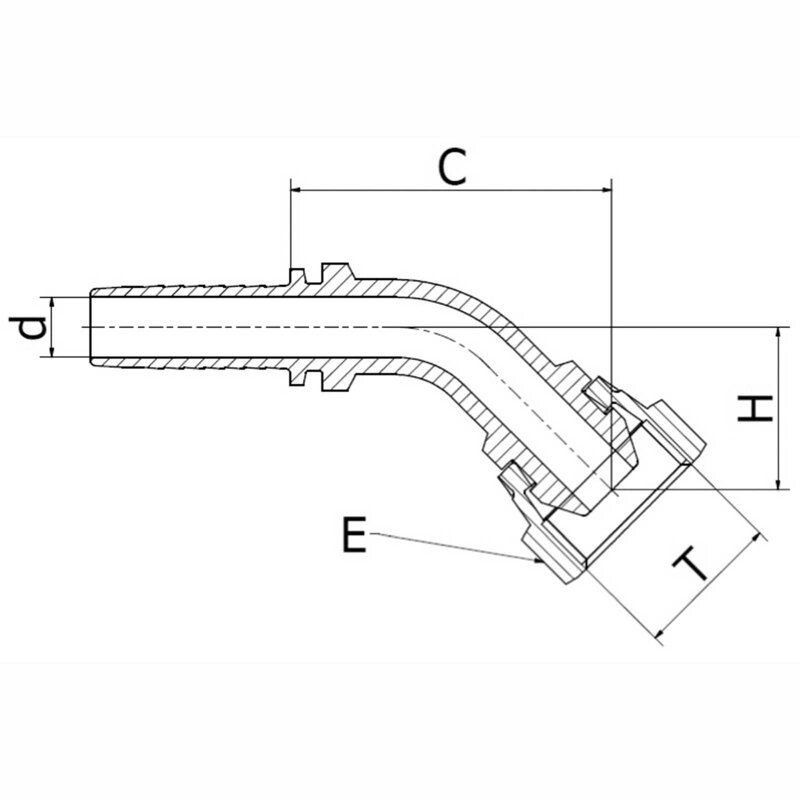

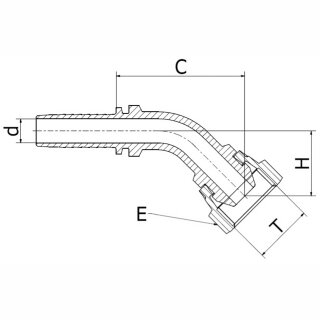

Technische Daten:
DN: 6 - 25 mm
d: 4,0 - 20,0 mm
E: 19 - 38 mm
H: 16,0 - 35,0 mm
L: 65,0 - 137,5 mm
Material: Automatenstahl
Oberfläche: CrIII
|
Nennweite
(mm)
|
Größe |
Zoll
|
Anschluss T |
Abzugsmaß C
(mm)
|
d
(mm)
|
E
(mm)
|
H
(mm)
|
L
(mm)
|
VE
|
| 6 | 04 | 1/4" | 1/4-19 | 40,0 | 4,0 | 19 | 16,0 | 65,0 | 5 |
| 6 | 04 | 1/4" | 3/8-19 | 43,0 | 4,0 | 22 | 20,0 | 68,0 | 5 |
| 8 | 05 | 5/16" | 3/8-19 | 52,0 | 5,5 | 22 | 21,0 | 80,5 | 5 |
| 10 | 06 | 3/8" | 3/8-19 | 48,0 | 7,0 | 22 | 19,0 | 76,0 | 5 |
| 10 | 06 | 3/8" | 1/2-14 | 41,0 | 7,0 | 27 | 22,0 | 70,5 | 5 |
| 12 | 08 | 1/2" | 1/2-14 | 50,0 | 9,5 | 27 | 23,0 | 81,5 | 5 |
| 16 | 10 | 5/8" | 5/8-14 | 59,0 | 12,0 | 30 | 27,0 | 93,5 | 5 |
| 16 | 10 | 5/8" | 3/4-14 | 64,0 | 12,0 | 32 | 26,0 | 98,5 | 5 |
| 19 | 12 | 3/4" | 3/4-14 | 70,0 | 15,0 | 32 | 28,0 | 119,5 | 5 |
| 19 | 12 | 3/4" | 1-11 | 69,5 | 15,0 | 38 | 31,5 | 110,5 | 1 |
| 25 | 16 | 1" | 1-11 | 84,0 | 20,0 | 38 | 35,0 | 137,5 | 1 |
Standardnennweiten in Fettdruck
Datenblatt ValCon DKR 45° BF 45°
Pressmaßtabelle für ValCon Schlauchleitungen
| Hersteller: | ValCon Quality Hydraulics |
| Kategorie: | Schlaucharmaturen |
| Artikelnummer: | PN-DKR-VCB45S |
| Versandgewicht: | 0,04 kg |
| Artikelgewicht: | 0,04 kg |
| Inhalt: | 1,00 Stück |
